Application:This connector can be mainly applied in audio/video like Mikron M7604 Thermal imaging camera.
Series:2B
Pins:12 Pin

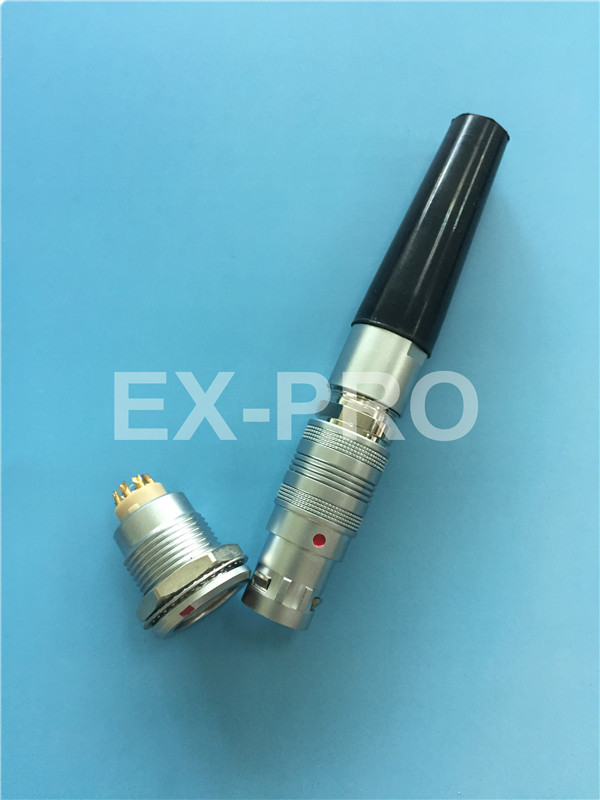

Model No:YHG.2B.312.CLAD; SCG.2B.312.CLL
This connector Nut can be with bend relief and without bend relief version for your selection.The cable collect we have 6.0mm~9.0mm for your selection.The connector we have PCB and solder two types of contact pin for selection,Plug use solder type pin.
OD Size:M15
Contact Dia(mm):0.7
Contact Resistance(mΩ):7.5
Working Current(A):7.0
Working Voltage:1350V/DC,950V/AC
＊Technical characteristics
Mechanical and Climatic
1. Endurance: > 5000 mating circles;
2. Humidity (Max): <=95% [at 60 deg C];
3. Temperature: -45 deg C, +125 deg C;
4. Vibration: 15 g[10 HZ-2000HZ];
5. Shock resistance: 100 g [6 ms];
6. Salt Spray Corrosion: > 48h;
7. IP Rating: IP50.
|
