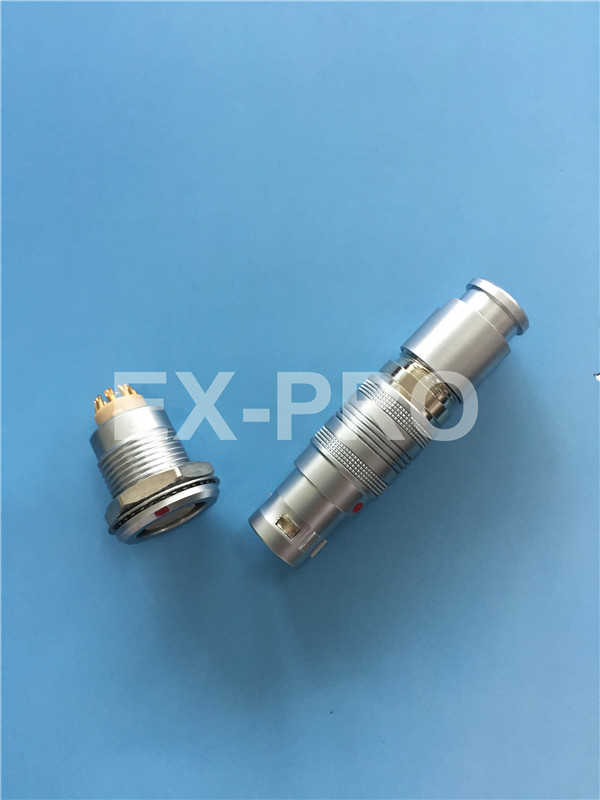

EX-PRO 2B 2 Pin connector

【Model】YGG.2B.02.CLAD-SGG.2B.02.CLL
Introduction:

This connector Nut can be with bend relief and without bend relief version for selection.The cable collect we have 60mm~70mm for your selection.The connector we have PCB and solder type contact pin for selection,Plug use solder type pin.
OD Size:M15
Contact Dia(mm):2.0
Contact Resistance(mΩ):2.5
Working Current(A):30
Working Voltage:1700V/DC,1350V/AC


EX-PRO 2B Series connector can be applied in Medical apparatus, communication, security system, Surveying, photography/audio/video, UCAM, automotive etc which can connect the electronic signal. Especially, this connector can be suitable with the instrument and equipment which need frequent connecting and disconnecting and EMC shielding, for example, medical apparatus like endoscope usually use 12 pins and 19 pins, photograph like video camera usually use 19 pins and 32 pins; automotive like robot usually use 32 pins connector.
--Number of contacts for selection:1B series connector have 2Pin,3Pin,4Pin,5Pin,6Pin,7Pin,8Pin,10Pin,14Pin and 16Pin,and 100 combinations for plug and socket.
--Plug types: YGG.YGG with bend relief
--Socket types: SGG,SCG,SEG,SCG(Elbow contact),PRG,WGG
--Shell Material: Pearl Chrome-plated brass alloy/Black chrome-plated brass alloy


*Technical characteristics
Mechanical and Climatic
1. Endurance: > 5000 mating circles;
2. Humidity (Max): <=95% [at 60 deg C];
3. Temperature: -45 deg C, +125 deg C;
4. Vibration: 15 g[10 HZ-2000HZ];
5. Shock resistance: 100 g [6 ms];
6. Salt Spray Corrosion: > 48h;
7. IP Rating: IP50.
