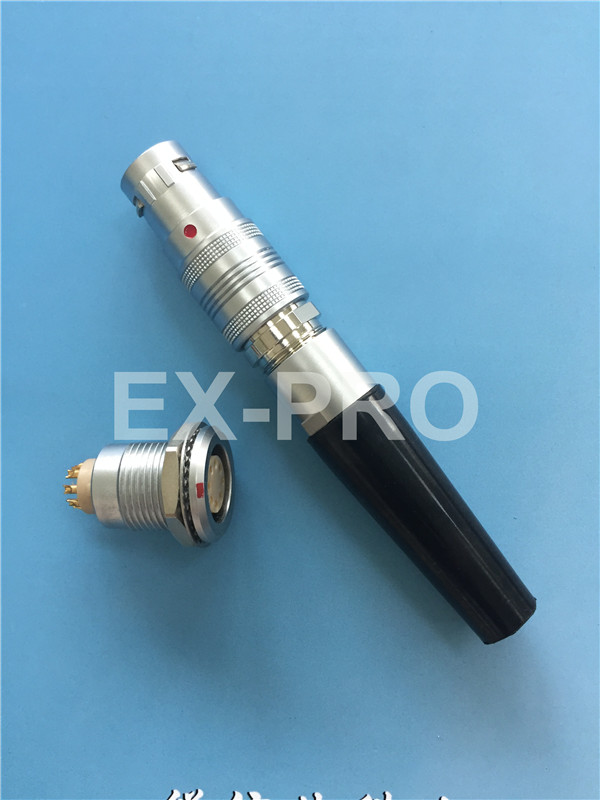

This push-pull self-locking metal connector products have fixed, floating, straight-through-type sockets available for selected models, fast plug and the separation of high-performance shielding effect, is widely used in data acquisition systems, inclinometer, computer automation Measurement and control systems, medical, mechanical equipment, audio / video, test and measurement, communications, automotive and power industries.

Series:2B
Pins:32 Pins
Compatible LEMO Model No:YGG.2B.332.CLAD-SGG.2B.332.CLL
There are two versions of connector Nut, one with bend relief and another one without bend relief for your selection.The cable collect we have 60mm~90mm for your selection.The connector we have PCB and solder type contact pin for selection,Plug use solder type pin.
OD Size:M15
Contact Dia(mm):0.5
Contact Resistance(mΩ):7.5
Working Current(A):1.5
Working Voltage:1050V/DC,700V/AC

＊Technical characteristics
Mechanical and Climatic
1. Endurance: > 5000 mating circles;
2. Humidity (Max): <=95% [at 60 deg C];
3. Temperature: -45 deg C, +125 deg C;
4. Vibration: 15 g[10 HZ-2000HZ];
5. Shock resistance: 100 g [6 ms];
6. Salt Spray Corrosion: > 48h;
7. IP Rating: IP50.

＊Note: We have the capacity and rich experience of tooling develop and design with providing whole connector application solutions.
