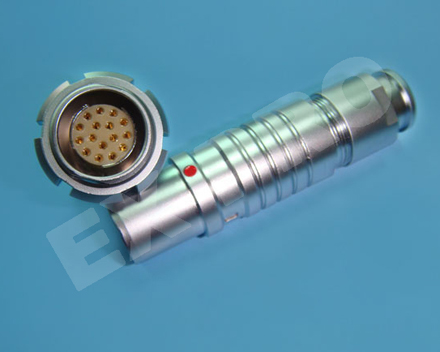

Male and Female 3B 16pin electrical connector


Model NO:YEG.3B.316.CLAD; SEGG.3B.316.CLL

Gender: Female& Male

Housing Shell: Black chrome-plated,Brass alloy

Contact material: Gold-plated,Brass alloy

Endurance: 5000 mating circles

Temperature: -45 deg C, +125 deg C

Insulator material: PPS/PEEK

Current rating: 1.5A

Working voltage: 300V/DC,250V/AC

Main features:

1-The quick push-pull self-locking system

2-Welding, crimping, and printing board connector

3-Straight, elbow.

4-Multiple keys options to avoid cross mating of similar connectors.

5- 360° screening for full EMC shielding

6-Series of multi-core, high-density installation space-saving

7-Key system pins standard for connector alignment.
