OD Size:M20
Contact Dia(mm):0.7
Contact Resistance(mΩ):7.0
Working Current(A):5
Working Voltage:1070V/DC,770V/AC

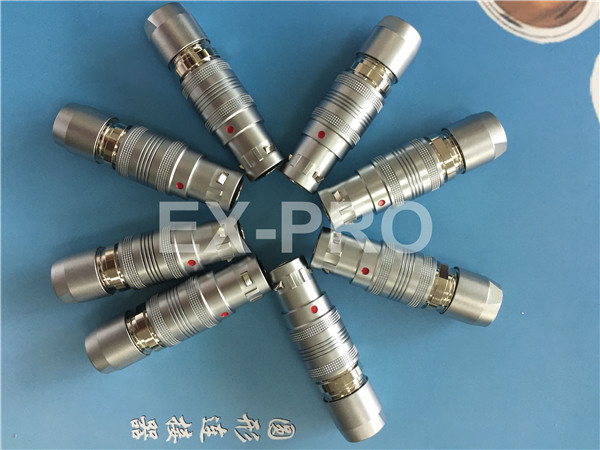

EX-PRO 2K Series connector can be applied in Medical apparatus, communication, security system, Surveying, photography/audio/video, UCAM, automotive etc which can connect the electronic signal. Especially, this connector can be suitable with the instrument and equipment which need frequent connecting and disconnecting and EMC shielding, for example, medical apparatus like endoscope usually use 12 pins and 19 pins, photograph like video camera usually use 19 pins and 32 pins; automotive like robot usually use 32 pins connector.

--Number of contacts for selection:2K series connector have 2Pin,3Pin,4Pin,6Pin,8Pin,10Pin,12Pin,19Pin and 32Pin,and 100 combinations for plug and socket.
--Plug types: YGG.YGG with bend relief
--Socket types: SGG,SCG,SEG,SCG(Elbow contact),PRG,WGG
--Shell Material: Pearl Chrome-plated brass alloy/Black chrome-plated brass alloy

＊Technical characteristics
Mechanical and Climatic
1. Endurance: > 5000 mating circles;
2. Humidity (Max): <=95% [at 60 deg C];
3. Temperature: -45 deg C, +125 deg C;
4. Vibration: 15 g[10 HZ-2000HZ];
5. Shock resistance: 100 g [6 ms];
6. Salt Spray Corrosion: > 48h;
7. IP Rating: IP65~IP68.

＊Note: We have the capacity and rich experience of tooling develop and design with providing whole connector application solutions.
