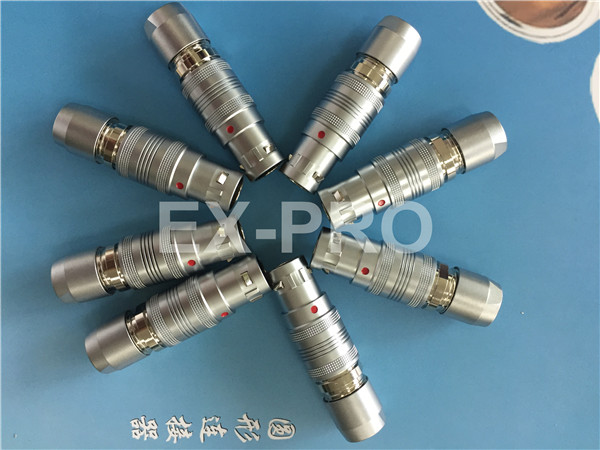

Application:EX-PRO 1B 7Pin connector can be mainly applied in medical apparatus like Oxygen probe,EEG,ECG and Data collection system. Series:1B Pins:7 PinsThis connector Nut can be with bend relief and without bend relief version for selection.The cable collect we have 40mm~60mm for your selection.The connector we have PCB and solder type contact pin for selection,Plug use solder type pin. OD Size:M12 Contact Dia(mm):0.7 Contact Resistance(mΩ):4.0 Working Current(A):7.0 Working Voltage:1150V/DC,800V/AC *Technical characteristics Mechanical and Climatic 1. Endurance: > 5000 mating circles; 2. Humidity (Max): <=95% [at 60 deg C]; 3. Temperature: -45 deg C, +125 deg C; 4. Vibration: 15 g[10 HZ-2000HZ]; 5. Shock resistance: 100 g [6 ms]; 6. Salt Spray Corrosion: > 48h; 7. IP Rating: IP50.
|
