Application:This connector can be mainly applied in communication system etc.
Series:0B
Pins:6 Pin

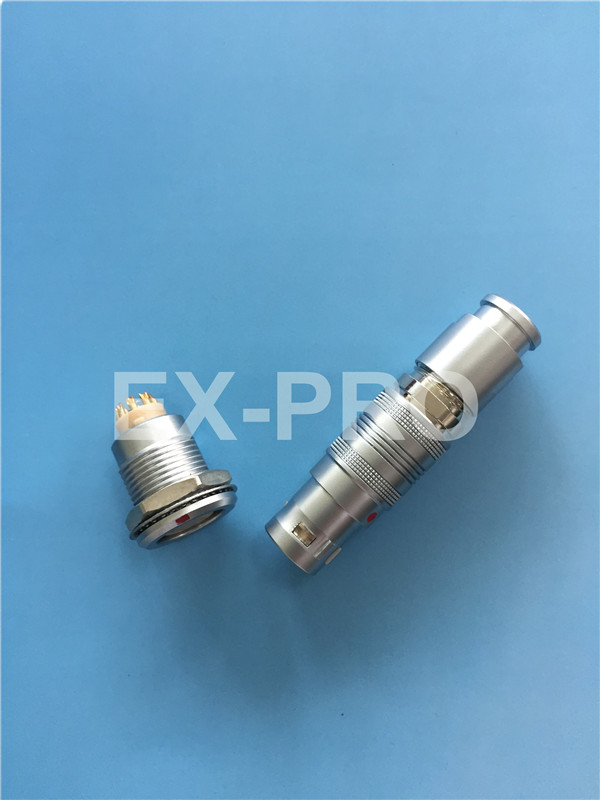

Model No:YGG.0B.306.CLAD; SGG.0B.306.CLL
This connector Nut can be with bend relief and without bend relief version for selection.The cable collect we have 30mm ~50mm for your selection.The connector we have PCB and solder type contact pin for selection,Plug use solder type pin.
OD Size:M9
Contact Dia(mm):0.5
Contact Resistance(mΩ):7.5
Working Current(A):2.5
Working Voltage:950V/DC,600V/AC
＊Technical characteristics
Mechanical and Climatic
1. Endurance: > 5000 mating circles;
2. Humidity (Max): <=95% [at 60 deg C];
3. Temperature: -45 deg C, +125 deg C;
4. Vibration: 15 g[10 HZ-2000HZ];
5. Shock resistance: 100 g [6 ms];
6. Salt Spray Corrosion: > 48h;
7. IP Rating: IP50.
＊Note: We have the capacity and rich experience of tooling develop and design with providing whole connector application solutions.
|
