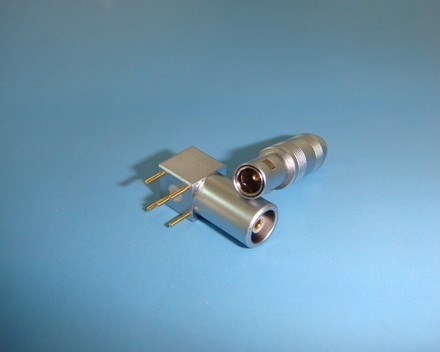

EPL 90 Degree right angle PCB coaxial connector

【Model】EPL.00.250.NLN
Introduction:

EX-PRO Newly develop a 90 degree right angle PCB connector. which suitable for PCB panel. Can comaptible with original: EPL.00.250.NLN


Shell: Chrome plated brass alloy
Impedance: 50Ω
Operating voltage 50hz: 700V
Test voltage 50hz :2100V
Rated current: 4A
Contact resistance :<6mΩ
Shell electrical continuity :<3.5mΩ
Insulating resistance: >1012Ω
Contact body Diameter :0.7mm
Insulator material: PPS
