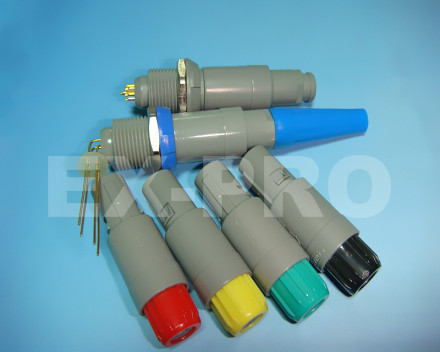

EX-PLS Plastic connector


1P Series waterproof connector with IP64(when mated) can be mainly applied in medical apparatus,testing and measurement etc.
This connector Nut can be with bend relief and without bend relief version for selection.The connector we have PCB and solder type contact pin for selection,Plug use solder type pin.
Color Code: 01:Black; 02:Blue; 03:Red; 04: Green; 05: Yellow; 06: Grey.
Cable collet: E39:2.7~3.9;E52:4.0~5.2;E65:5.3~6.5
OD Size:M14

1P Series plastic connector features:
1)Simple connection and separation—rapid push-pull self-latching system
2)Welding ,crimping and PCB-core-type print contacts
3)Straight and 90 degree elbow contacts
4)Pin system can be chosen to avoid the use of a machine similar to the connector between the mixed interpolation
360°EMC shielding, anti-electromagnetic interference
5) Housing with heat resistance material can bear the temperature range from -25℃ to 125℃, widely applied in various environment.
6)Series of multi-core, high-density installation space-saving
