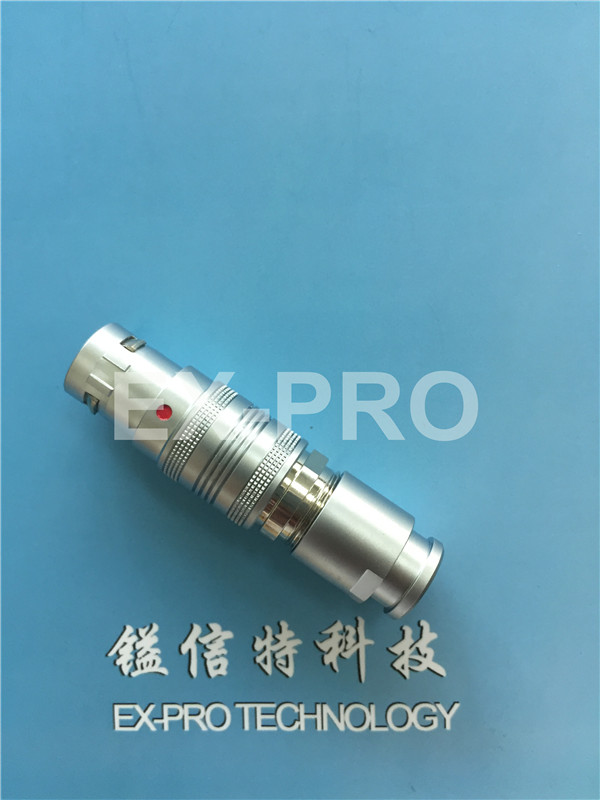

EX-PRO 2B Series connector can be applied in Medical apparatus, communication, security system, Surveying, photography/audio/video, UCAM, automotive etc which can connect the electronic signal. Especially, this connector can be suitable with the instrument and equipment which need frequent connecting and disconnecting and EMC shielding, for example, medical apparatus like endoscope usually use 12 pins and 19 pins, photograph like video camera usually use 19 pins and 32 pins; automotive like robot usually use 32 pins connector.
--Number of contacts for selection:1B series connector have 2Pin,3Pin,4Pin,5Pin,6Pin,7Pin,8Pin,10Pin,14Pin and 16Pin,and 100 combinations for plug and socket.
--OD:12.0mm
--Contact Dia:0.7mm~1.3mm
--Plug types: YGG.YGG with bend relief
--Socket types: SGG,SCG,SEG,SCG(Elbow contact),PRG,WGG
--Shell Material: Pearl Chrome-plated brass alloy/Black chrome-plated brass alloy
Product Features:
1)Simple connection and separation—rapid push-pull self-latching system
2)Welding ,crimping and PCB-core-type print contacts
3)Straight and 90 degree elbow plug
4)Pin system can be chosen to avoid the use of a machine similar to the connector between the mixed interpolation
5)360°EMC shielding, anti-electromagnetic interference
6)Series of multi-core, high-density installation space-saving
|
